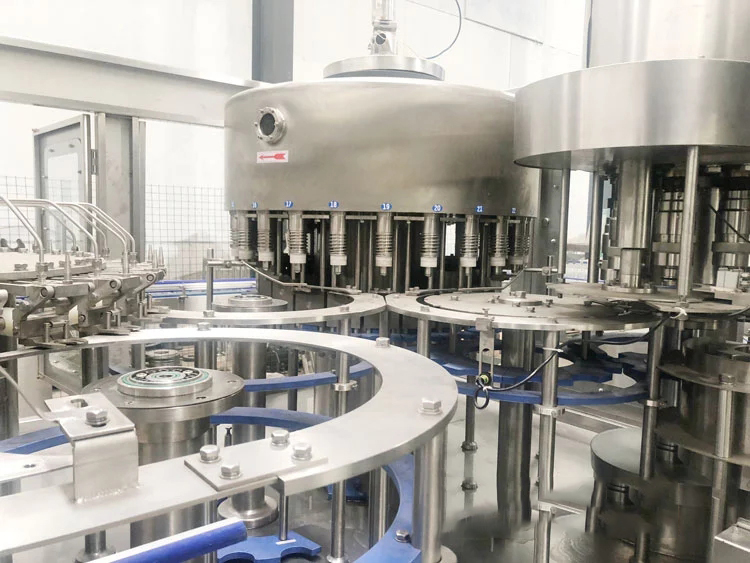

3500*2200*2500mm 2000ml Mineral Water Bottling Machine
Feature:
1. The Mineral Water Bottling Machine adpots advanced human-machine interface control. High quality
international name brand key component
2. Spring type rinsing catcher can wash both inside and outside of
the bottle
3. Low overall machine noise
4. Quiet, rotary cap unscrambler will not damage caps.
Photoelectric sensor detect missing caps thus eliminating uncapped
bottle spillage
5. Built-in safeguard mechanism ensures the safety of operator and
machine.
6. High efficient air clean filter system ensures high sanitary
requirements
7. Suspension bottle neck catcher structure allows the machine
change the bottle type easily. By changing the valves, it also can
be used as hot filling machine
8. High accuracy pressure water filling mechanism, ensure the
height and quatity of the water filling
9. Magnetic powered cap device ensures tightness and prevents
damage of the caps
7. Self-lubricating system imported from America provides continuous
smooth operation.
Technical parameter
Model | CGF32-32-10 |
Production capacity(500ml)(b/h) | 12000-15000 |
Filling precision | ≤±5MM(Liquid Level) |
Polyester bottle standard(mm) | Bottle diameter40-80; |
Height | Height:130-280 |
Suitable cap shape | Plastic Screw Cap |
Water pressure of Washing bottle(MPa) | 0.18 |
Water consumption for Water bottle (kg/h) | 800 |
Spraying position | 12 |
Dripping bottle position | 7 |
Gas source pressure(Mpa) | normal pressure |
Gas consumption(m3/mm) | 0.4 |
Total power | 8.63kw |
Total weight | 6000kg |
Dimension(L*W*H) | 3500*2200*2500mm |
