3 in 1 Monoblock Bottling Machine

Ask Lasest Price
Brand Name :	OEM
Certification :	CE，ISO
Price :	Negotiation
Supply Ability :	15 Sets Per Months
Delivery Time :	35 working days
Payment Terms :	T/T, L/C, Western Union, MoneyGram

Add to Cart

Product Details
Company Profile

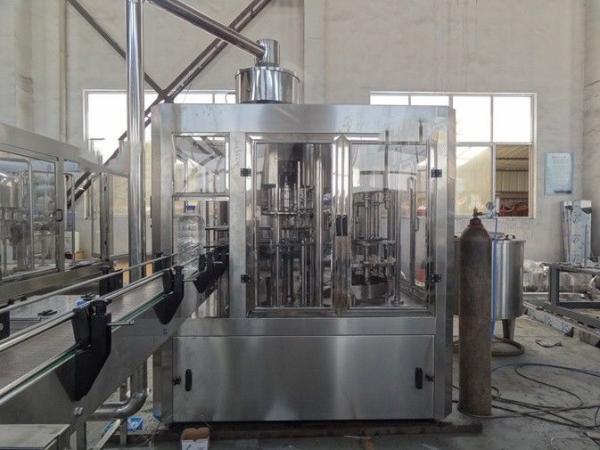

3 in 1 Monoblock Bottling Machine

3 in 1 Monoblock Bottling Machine

Features

1. Full filling to avoid the bottle from sinking after the bottle cooling off, and to decrease the dissolved oxygen to the utmost extent.

3. Sanitary filling head system is of umbrella structure, high filling speed.

4. Reasonable structured storage hopper and material supply system make the material in constant flow speed, constant pressure without frothing. Usually high position tank is adopted

2. The storage hopper has the characteristic of gas discharge, full sealing and temperature detecting. In moderate and high speed production line, the material distributor replaces the big liquid tank to realize

the complete CIP.

5. Per fect filling temperature control system.

6. Reflux tank system has the function of supplying the material automatically.

7. Perfect CIP system.

Complete filling line with apple juice bottle making machine 3-in-1 monoblock

Standard 3-in-1 monoblock for PET bottles rinsing, hot filling and capping. It is applicable to fruit juice, tea beverage, functional beverage, etc with 2000-20000BPH capacity. According to the special production condition, another sterilizing rinsing module could be added, that is 4-in-1 monoblock. The system has fully considered the beverage's characteristics (such as the frothing of the tea drink and mixed juice) and the technical requirement of the hot filling.

Specifications

Complete filling line with apple juice bottle making machine 3-in-1 monoblock

Technique parameter

Productivity	6000BPH
Rinsing Head	18
Filling Head	18
Capping Head	6
Bottle Volume	350ml~2000ml±10ml
Bottle Diameter	φ50-92mm
Bottle Height	150-310 mm
Filling Tolerance	±2%
Cap Size	28mm and 30mm PE Standard Caps
Air Pressure	0.6MPa
Air Consumption	500 L/min
Gas Consumption	0.4 m3/min
Motor Power	6.68kW
Voltage	380V
Dimension	(L×W×H) 245018002200mm
Weight	3000kg
Filling Principle	Gravity Filling

Advantages

We offer professional turnkey project from design till done of the whole project.

1. Project consultation

2. Design

3. Factory building

4. Installation

5. Commissioning

6. Training
