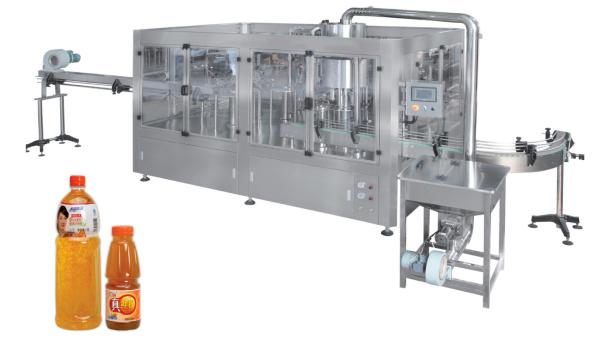

Stainless Steel 4 in 1 6000 BPH Automated Bottling Machine
Brief Introduction:
This machine is comprised of rinsing, filling and capping system.
Rinsing: grip the bottle neck, rotate filling plate, inverse
bottle; internal rinsing and external spraying make bottles be
cleaned completely. Filling: hot filling with holding bottle neck;
the special backflow type of the filling valve can avoid leakage
after filling and also control liquid level accurately. Capping:
magnetic torque bottle holding type can minimize the cap damage
rate and make the capping performance the best.
This machine owns the reasonable, stable and safe design. Under the
condition that the bottle neck size is the same, only the output
star wheel needs to be changed if bottles are different. It
improves the efficiency a lot.
All the machine part which contact with liquid is high quality
stainless steel 304. The relative fittings are from international
famous brand.
The automatic 4 in 1 juice filling machine was equipped with
suspension type air conveyor and frequency control of motor speed.
We are the automatic 4 in 1 juice filling machine equipment
manufacturer in China.
Model | 1818186 | 2418248 | 32243210 |
Heads of washing,filling,capping | 18-18-18-6 | 24-18-24-8 | 32-24-32-10 |
Production capacity(500ml) | 5000-6000 | 8000-10000 | 10000-12000 |
Suitable bottle height(mm) | Φ=50-100(330~1500ml) | ||
Spraying pressure(Mpa) | 0.25-0.3 | ||
Total power(kw) | 3+0.37 | 4+0.45 | 5.5 |
Overall dimension(mm)(L*W*H) | 3500*1860*2550 | 4200*2100*2550 | 5000*2100*2850 |
Weight (kg) | 3500 | 4650 | 6800 |
![]() |
