SUS304 3 In 1 Automatic Rinsing Filling And Capping Machine
Products Introduction
1. The Advanced Carbonated Soft Drink Bottling Machine / Soda Water
Filling Equipment is mainly used for filling soft drink. It
combines washing and filling and capping as one automatic body
suitable for PET or other plastic bottles. The equal pressure
filling technology is adopted enabling it to fill more efficiently
and more stably with more output than the machine of the same level
from others.
2. Besides using photo-electronic detectors to detect the running
of every important sub-process, it employs PLC from OMRON for
automatic control of the whole process and new type air-channel for
bottle-loading featuring speediness and damage-free of bottle.
3. The handing-over of bottles between two linking structures is
fulfilled by applying clamping-bottle-neck method.
4. For bottle of different shape only a few parts need to be
changed and the substituting is simple, which shows the machine is
of good adaptability.
5. High automation and easy operation make it an ideal option for
beverage companies.
Technical Parameter
Model | CGFD8-8-3 | CGFD12-12-6 | CGFD18-18-6 | CGFD 24-24-8 |
washing, filling and capping heads No. | 8-8-3 | 12-12-6 | 18-18-6 | 24-24-8 |
Capacity | 1500~2000BPH | 3000~3500BPH | 4000~5000BPH | 7000~7500BPH |
Bottle Volume Range | volume=330-2000ml | φ=50-110 H=150~340mm volume=330-2500ml |
Motor power(kw) | Main motor | Main motor 3.5kw | Main motor 4.0kw | Main motor 4.8kw |
Overall dimensions (mm) | 1.9kw | 2450*1800*2400 | 2650*1900*2400 | 2900*2100 *2400 |
Weight (kg) | 1900*1420*2000 | 2500 | 3500 | 4500 |
|
Model | CGFD 32-32-8 | CGFD 40-40-10 | CGFD 50-50-12 | CGFD 60-60-15 |
washing, filling and capping heads No. | 32-32-8 | 40-40-10 | 50-50-12 | 60-60-15 |
Capacity | 8000-10000BPH | 10000-12000BPH | 12000-15000BPH | 15000-18000BPH |
Bottle Volume Range | volume=330-2000ml | φ=50-110 H=150 ~340mm volume=330-2500ml |
Motor power(kw) | Main motor 7.6kw | Main motor 8.3kw | Main motor 9.6kw | Main motor 15Kw |
Overall dimensions (mm) | 4100*2000 *2400 | 4550*2650 *2400 | 5450*3210 *2400 | 5500*3510 *2400 |
Weight (kg) | 6500 | 8500 | 9800 | 12000 |
Details Show
Out Look
> 304 stainless steel frame
> Tempering Glass window, Clear & no odor
> Excellent start wheel design, easy change over parts
> Machine Base with anti-rust process, ensure the forever
antirust
> All seal where liquid may Leakage & base neck come with
rubber, water proof
> Manual lubrication system
Washing Station
➢ All 304 stainless steel rinser heads, water spray style inject
design, more save water consumption & more clean
➢ 304 Stainless steel Gripper with plastic pad, ensure minimal
bottle crash during washing
➢ 304 stainless steel washing pumps

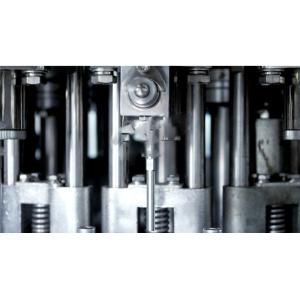

Filling Station
➢ High precision filling nozzle, PLC variable signal control,
ensure high filling precision & filling smoothly & steadily,
➢ All 304 stainless steel contact parts & liquid tank, fine polish,
easy to clean
➢ No bottle no filling

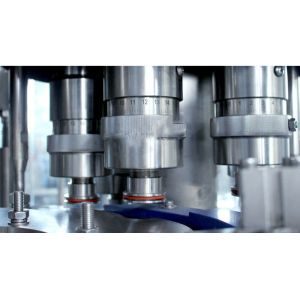

Capper Station
➢ Place & capping system, electromagnetic capping heads, with
burden discharge function, make sure minimum bottle crash during
capping
➢ All 304stainless steel construction
➢ No bottle no capping
Bottle Inlet (Air Conveyor)
➢All Stainless Steel 304 include the all the connection parts and
bottle exchange part .
➢Big motor Air fan
➢Steady running for the machine . Strong Machine . Can be
customizer the length and design .
