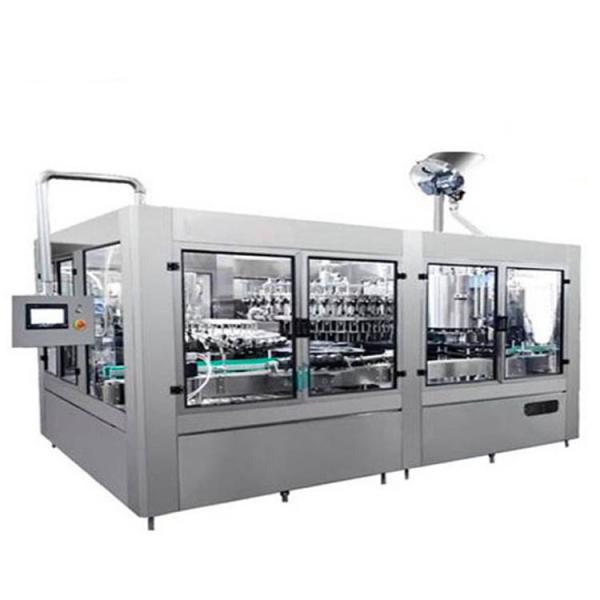

Stainless Steel 8 Filling Head Monoblock Bottling Machine

Product features

1. It equipps reverse-flow system to make sure the filling quality, which can avoid the steam effect from high temperature juice

2. Automatic cleaning system is equipped, it can connect to CIP cleaning system directly to clean the filling tank and valve, which is good for machine service life.

3. Centralized lubricating oil for easy maintenance and maintenance.

4. It employs single cavity plunger type of fixing filling volume technique and equipped with perfect temperature control system

5. Each machine element that contacts with the liquid is made of high quality stainless steel and food-grade rubber.

Equipment description:

juice bottling machine has 3 working positions: rinsing part, filling part and capping part. It’s mainly used to empty bottle rinsing, juice filling and

cap screwing. This machine is used for fruit juice production continuously. This hot fruit juice filing equipment uses bottle neck holding transmission

technology to realize automatic bottle rinsing, juice filling and cap screwing.

If customer wants to fill fruit pulp into the bottle together, we can also add one more step fruit pulp filling into the machine, to satisfy different customer demands.

Equipment parameters:

Details description:

Bottle inlet:

This machine has two types empty bottle feeding way, first one, filling machine can be directly connected to automatic bottle blowing machien with air conveyor, then bottles will be sent to filling machine working position automatically without people touching. Second, people can collect empty bottles first, then feed the empty bottle to air conveyor part of filling machine, we will provide bottle feeding table for more covenient

operation, we will suggest good way according to customer situation and demands.

Bottle rinsing:

Bottles rinsing part use stainless steel clamp to hold the empty bottle neck, after bottle get into rinsing part, bottles will be turned 180 degree, which means bottle mouth face to the filling machine working table. Then purifies water will be spray into bottle inside to wash it.

If customer have special use for the product, we can also add more washing steps, like hot alkaline water rinsing, sterilizing

water rinsing, to make the washing effect.

Bottle filling:

This machine use high temperature filling, filling tenperature is around 85-92℃, all liquid contact parts is able to to withstand high temperature.

Machine equips with liquid reflux system, to deal with the steam effect from high temperature liquid. which is suitabel for tea, hot filling of fruit meat-containing juice, fruit juice, flavored milk, functional beverages, drinking water and other beverages.

Screw capping:

Screw capping heads and the slide cover linked as a one body, when it move along with the main shaft, the gear of the screw

capping shaft will gear with inner tooth ring through idler gear to make it rotate, then screw down the cap, if exceed the stated

torque (suction of the magnetic pillar), the slide cover and machinery body will move, the capping cover will not move, which can prevent bottles or caps damaging.
