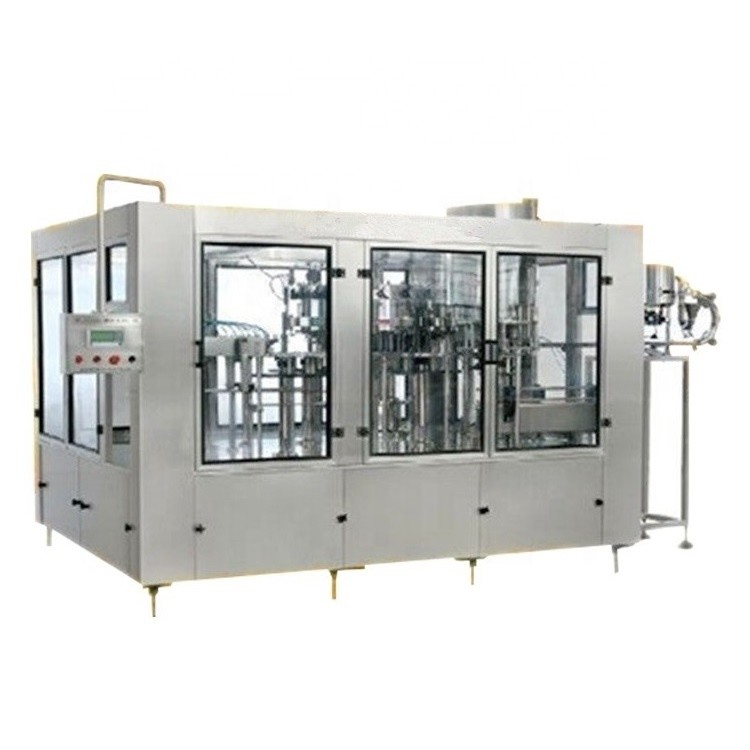

High Filling Speed SUS304 500ml Monoblock Bottling Machine

Specification

1. PLC control

2. Capacity:6000b/h

3. High Technique With Competitive Price

4. bottle size:250ml-2L

5. Component contact with liquid adopt SUS304

Features

Standard 3-in-1 monoblock for PET bottles rinsing, hot filling and capping. It is applicable to fruit juice, tea beverage, functional beverage, etc with 2000-20000BPH capacity. According to the special production condition, another sterilizing rinsing module could be added, that is 4-in-1 monoblock. The system has fully considered the beverage's characteristics (such as the frothing of the tea drink and mixed juice) and the technical requirement of the hot filling.

1. Sanitary filling head system is of umbrella structure, high filling speed.

2. Per fect filling temperature control system.

3. The storage hopper has the characteristic of gas discharge, full sealing and temperature detecting. In moderate and high speed production line, the material distributor replaces the big liquid tank to realize

the complete CIP.

4. Full filling to avoid the bottle from sinking after the bottle cooling off, and to decrease the dissolved oxygen to the utmost extent.

5. Reasonable structured storage hopper and material supply system make the material in constant flow speed, constant pressure without frothing. Usually high position tank is adopted.

6. Reflux tank system has the function of supplying the material automatically.

7. Perfect CIP system.

2) Technique parameter

	16-12-6	18-18-6	24-24-8
Productivity	3000BPH	6000BPH	10000BPH
Rinsing Head	16	18	24
Filling Head	12	18	24
Capping Head	6	6	8
Bottle Volume	350ml~2000ml±10ml
Bottle Diameter	φ50-92mm
Bottle Height	150-310 mm
Filling Tolerance	±2%
Cap Size	28mm and 30mm PE Standard Caps
Air Pressure	0.6MPa
Air Consumption	500 L/min
Filling Water Consumption	1.5 m3/h	3 m3/h	6 m3/h
Rinsing Water Consumption	0.5 m3/h	1 m3/h	2 m3/h
Motor Power	5.88kW	6.68kW	7.68kW
Voltage	380V
Dimension	(L*W*H) 2100*1500*2200mm	(L×W×H) 2450*1800*2200mm	(L×W×H) 2750*2180*2200mm
Weight	2500kg	3000kg	5300kg
Filling Principle	Gravity Filling

Advantages

We offer professional turnkey project from design till done of the whole project.

1. Project consultation

2 .Design

3. Factory building

4. Installation

5. Commissioning

6. Training

We can provide beverage filling line as below:

1. Complete pure/mineral water production line

2. Complete pure/mineral water treatment machine

3. Complete juice production line

4. Complete carbonated beverage production line

5. 5 Gallons drinking water production line.

6.End-of-line packaging system
