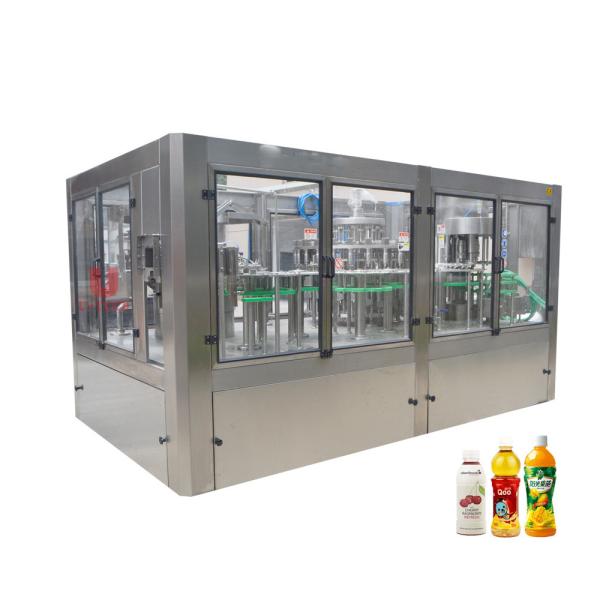

24 Heads Hot Filling Small Scale Juice Bottling Equipment

Specifications:

1. The juice filling machine is used to fill PET heat resistant bottle for fruit tea, juice and other high-temperature juice.

2. The core parts of machine employs PLC+, frequency convertor+ and human-machine interface control technology

3. High efficient clean air filter circulation system ensures high sanitary requirements

4. The machine structure is reasonable and firm, the running state is stable

5. The suspension bottle neck catcher allows the machine change the bottle type easily

6. Unique control mechanism keeps circumfluence volume below 5%

7. Airtight valve made of non-plastic material prevents worn-out particles from dropping into bottles adversely affecting product quality

8. Safe protective devices ensure safety of operator and machine

9. Low overall machines noise

Juice bottling machine description:

1. This machine is combined with washer, filler and capper 3 seperate systems in one machine, it is an idea equipment for all kinds of fruit juice drinks, energy drinks and tea drinks.

4. It has CIP cleaning function, which can clean beverage tank, pipeline and filling valve and all other parts contacting beverage.

5. Using international brand touch screen control, PLC computer control, inverter control technology to make machine operation more easy.

2. If customer wants to use this machine for pure water, mineral water filling production, it only need to adjust some parts of machine.

3. Advanced filling technology and rich exparience manufacturing, this machine can fill more quickly, stable, accurate, equipped with a perfect reflux system.

Juice bottling machine parameters:

Juice bottling machine details:

Bottle inlet:

The air feeding device is adopted to feed the bottle, and the bottle diameter method is used to hang the bottle. The bottle loading speed is fast and the bottle will not deform

Bottle rinsing:

It adopts advanced bottle neck griping technology to avoid contact with the screw mouth of the bottle, more sanitary.

The delivery of the bottle in the machine all adopts the card bottle neck griping technology, so if customee wants to change different bottle shapes with the same bottle mouth, there is no need to adjust the height of the equipment, just replace the corresponding protective plate according to the diameter of the bottle body.

Cap loading system:

The cap loading system adopts rotary type cap arraning system with a speed of up to 20,000 pcs per hour. The cap is stored in the cap

hopper, and the motor drives the internal rotation, so that the ccap is arranged in an orderly manner and sent to the outlet of the cap.

Electric cabinet:

The whole machine operating electric control cabinet is inside the machine. All single equipment can run and stop in the control cabinet, all electric parts like PLC, frequency inverter, contactor...etc are located here, with stainless stell box to protect it, very safe and portable.

Beijing Silk Road Enterprise Management Services Co.,LTD is a professional company focus on Juice Bottling Machine and filling machine business. Beijing Silk Road will be responsible with exporting and logistic business. there is professional factory Beijing Silk Road which focus on desigining and manufacture.

Founded in 2009, Our company is a leading manufacturer and supplier of Juice Bottling Machine, filling machine in China. We are committed to improving the standard of our products to fulfill the growing various solution for packaging and drink industry over the past few years.

Our products including: juice bottling machine , small scale juice bottling equipment, juice bottle filling equipment, monoblock bottling machine, automated bottling machine, aseptic bottle filling machine, mineral water bottling machine, small scale bottling machine, carbonated drink bottling machine, soft drink bottling machine
