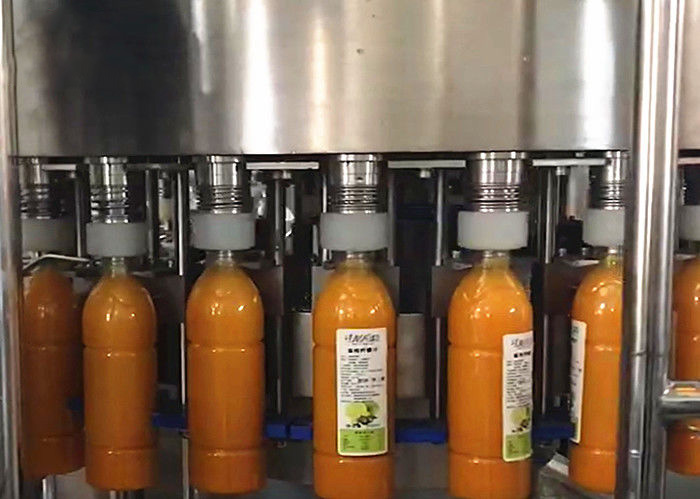

CIP Cleaning 24 Heads Hot Filling Juice Bottling Machine
Juice bottling machine description:
1. This hot filling juice bottling machine is combined with washer,
filler and capper 3 seperate systems in one machine, it is an idea
equipment for all kinds of fruit juice drinks, energy drinks and
tea drinks.
2. It has CIP cleaning function, which can clean beverage tank,
pipeline and filling valve and all other parts contacting beverage.
3. Using international brand touch screen control, PLC computer
control, inverter control technology to make machine operation more
easy.
4. If customer wants to use this machine for pure water, mineral
water filling production, it only need to adjust some parts of
machine.
5. Advanced filling technology and rich exparience manufacturing,
this machine can fill more quickly, stable, accurate, equipped with
a perfect reflux system.
Juice bottling machine parameters:
Item | RCGF12-12-6 | RCGF18-18-6 | RCGF24-24-8 | RCGF32-32-10 | RCGF 40-40-13 |
Capacity bottles per hour | 2000-3000 | 4000-5000 | 7000-8000 | 9000-11000 | 12000-14000 |
Suitable bottle diameter | 50-90mm 200-2000ml |
Filling temperature℃ | 85-92℃ |
Machine weight KG | 2500 | 3500 | 4500 | 5000 | 7000 |
Machine size L*W*H (mm) | 2400*1600 *2400 | 2400*1850 *2400 | 3100*2200 *2400 | 3600*2500 *2400 | 4000*2800 *2400 |
Juice Bottling machine features:
Overload protection device is located in this machine, this is very
impoertant and effective protection for machine and operator. In
order to make machine run in smooth situction, this machine adopts
automatic cap laoding system to do the cap feeding prcess, and this
system can prevent wront cap geting into capping channel. Automatic
liquid level detection system is also equipped in this machine, to
control the liquid level in filling tank well. The whole machine is
driven by motor, the the power will be transfered to every working
position by gear and belt. With frequency inverter, machine
production speed can be adjusted easily.
Juice bottling machine details:
No | Item | Detail |
1 | Bottle inlet | The air feeding device is adopted to feed the bottle, and the
bottle diameter method is used to hang the bottle. The bottle
loading speed is fast and the bottle will not deform |
2 | Bottle rinsing | It adopts advanced bottle neck griping technology to avoid contact
with the screw mouth of the bottle, more sanitary. The delivery of the bottle in the machine all adopts the card
bottle neck griping technology, so if customee wants to change
different bottle shapes with the same bottle mouth, there is no
need to adjust the height of the equipment, just replace the
corresponding protective plate according to the diameter of the
bottle body. |
3 | Cap loading system | The cap loading system adopts rotary type cap arraning system with
a speed of up to 20,000 pcs per hour. The cap is stored in the cap hopper, and the motor drives the internal rotation, so that the
ccap is arranged in an orderly manner and sent to the outlet of the
cap. |
4 | Electric cabinet | The whole machine operating electric control cabinet is inside the
machine. All single equipment can run and stop in the control
cabinet, all electric parts like PLC, frequency inverter,
contactor...etc are located here, with stainless stell box to
protect it, very safe and portable. |
