Automatic High Temperature Filling Juice Bottling Machine

Automatic High Temperature Filling Juice Bottling Machine

Product features:

1. High speed filling valve, guarantees liquid has precise level and no waste is incurred

2. The advanced programmed controller (PLC) is adopted to control the machine to run automatically.

3. It integrates bottle washing, filling and capping into one body of this machine.

4. It is very convenient to change bottle size by means of advanced bottle conveying technology--bottleneck clamping & bottle suspending technology.

Equipment description:

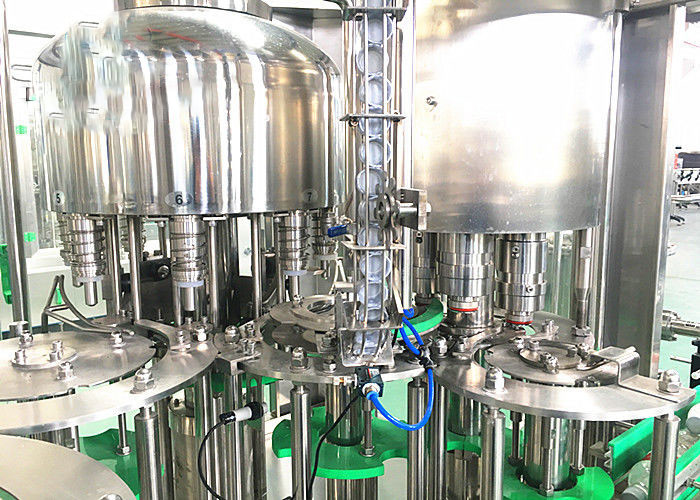

juice bottling machine has 3 working positions: rinsing part, filling part and capping part. It’s mainly used to empty bottle rinsing, juice filling and cap screwing. This machine is used for fruit juice production continuously. This hot fruit juice filing equipment uses bottle neck holding transmission technology to realize automatic bottle rinsing, juice filling and cap screwing.

If customer wants to fill fruit pulp into the bottle together, we can also add one more step fruit pulp filling into the machine, to satisfy different customer demands.

Equipment parameters:

Item	RCGF8-8-3	RCGF12-12-6	RCGF18-18-6	RCGF24-24-8	RCGF32-32-10
Capacity bottles per hour	1500-2000	2000-3000	4000-5000	7000-8000	9000-11000
Suitable bottle diameter	50-90mm 200-2000ml
Filling temperature ℃	85-92
Machine weight KG	1500	2500	3500	4500	5000
Machine size LWH (mm)	19001600 2400	24001600 2400	24001850 2400	31002200 2400	36002500 2400

Details description:

No	Item	Detail
1	Bottle inlet	This machine has two types empty bottle feeding way, first one, filling machine can be directly connected to automatic bottle blowing machien with air conveyor, then bottles will be sent to filling machine working position automatically without people touching. Second, people can collect empty bottles first, then feed the empty bottle to air conveyor part of filling machine, we will provide bottle feeding table for more covenient operation, we will suggest good way according to customer situation and demands.
2	Bottle rinsing	Bottles rinsing part use stainless steel clamp to hold the empty bottle neck, after bottle get into rinsing part, bottles will be turned 180 degree, which means bottle mouth face to the filling machine working table. Then purifies water will be spray into bottle inside to wash it. If customer have special use for the product, we can also add more washing steps, like hot alkaline water rinsing, sterilizing water rinsing, to make the washing effect.
3	Bottle filling	This machine use high temperature filling, filling tenperature is around 85-92℃, all liquid contact parts is able to to withstand high temperature. Machine equips with liquid reflux system, to deal with the steam effect from high temperature liquid. which is suitabel for tea, hot filling of fruit meat-containing juice, fruit juice, flavored milk, functional beverages, drinking water and other beverages.
4	Screw capping	Screw capping heads and the slide cover linked as a one body, when it move along with the main shaft, the gear of the screw capping shaft will gear with inner tooth ring through idler gear to make it rotate, then screw down the cap, if exceed the stated torque (suction of the magnetic pillar), the slide cover and machinery body will move, the capping cover will not move, which can prevent bottles or caps damaging.

Automatic High Temperature Filling Juice Bottling Machine
